IAME X30 TaG 125cc
IAME X30 TaG 125cc
IAME X30 TaG 125cc

IAME X30 TaG 125cc

Sale price$3,295.00

Product Details

CALL TO PLACE ORDER - 248 924 3272

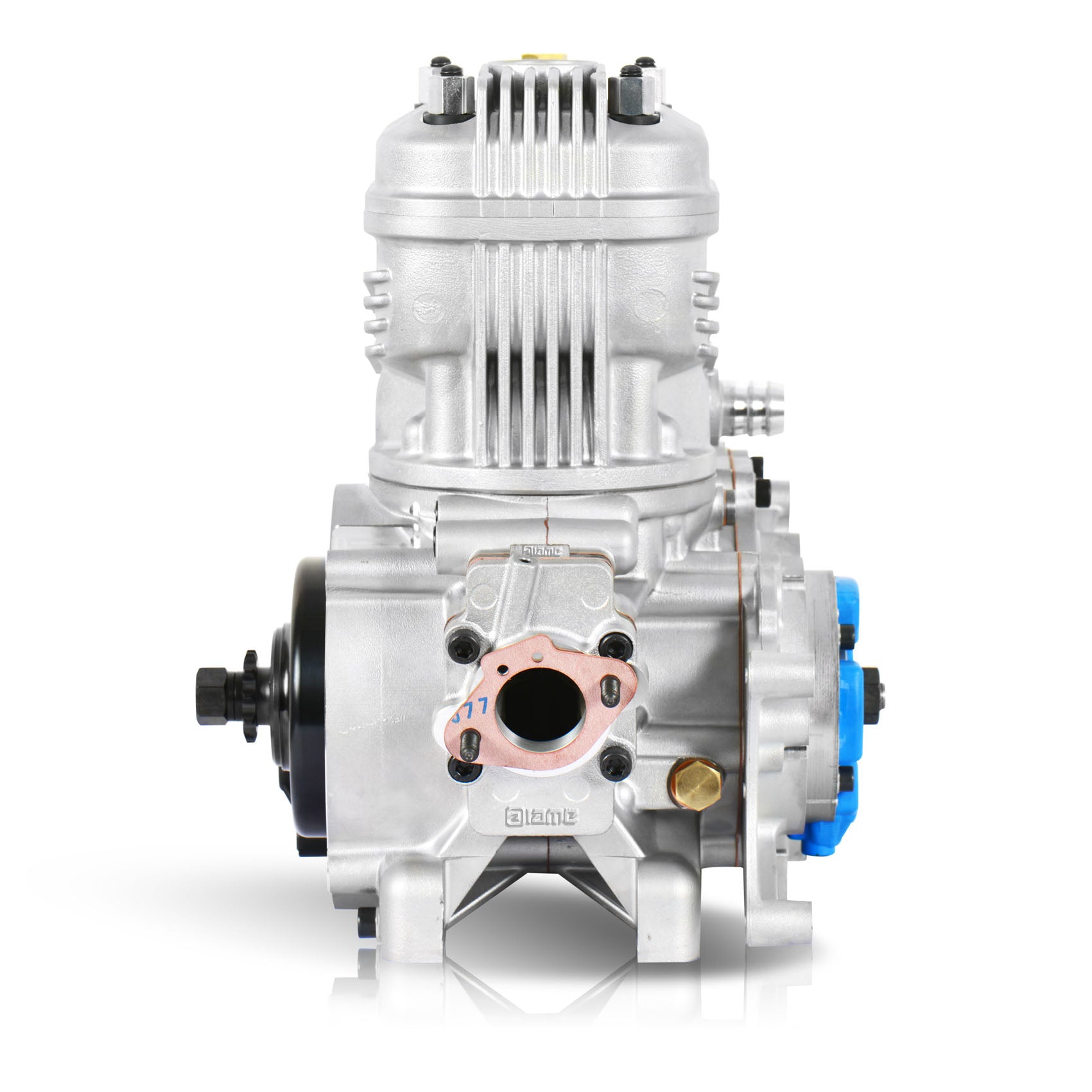

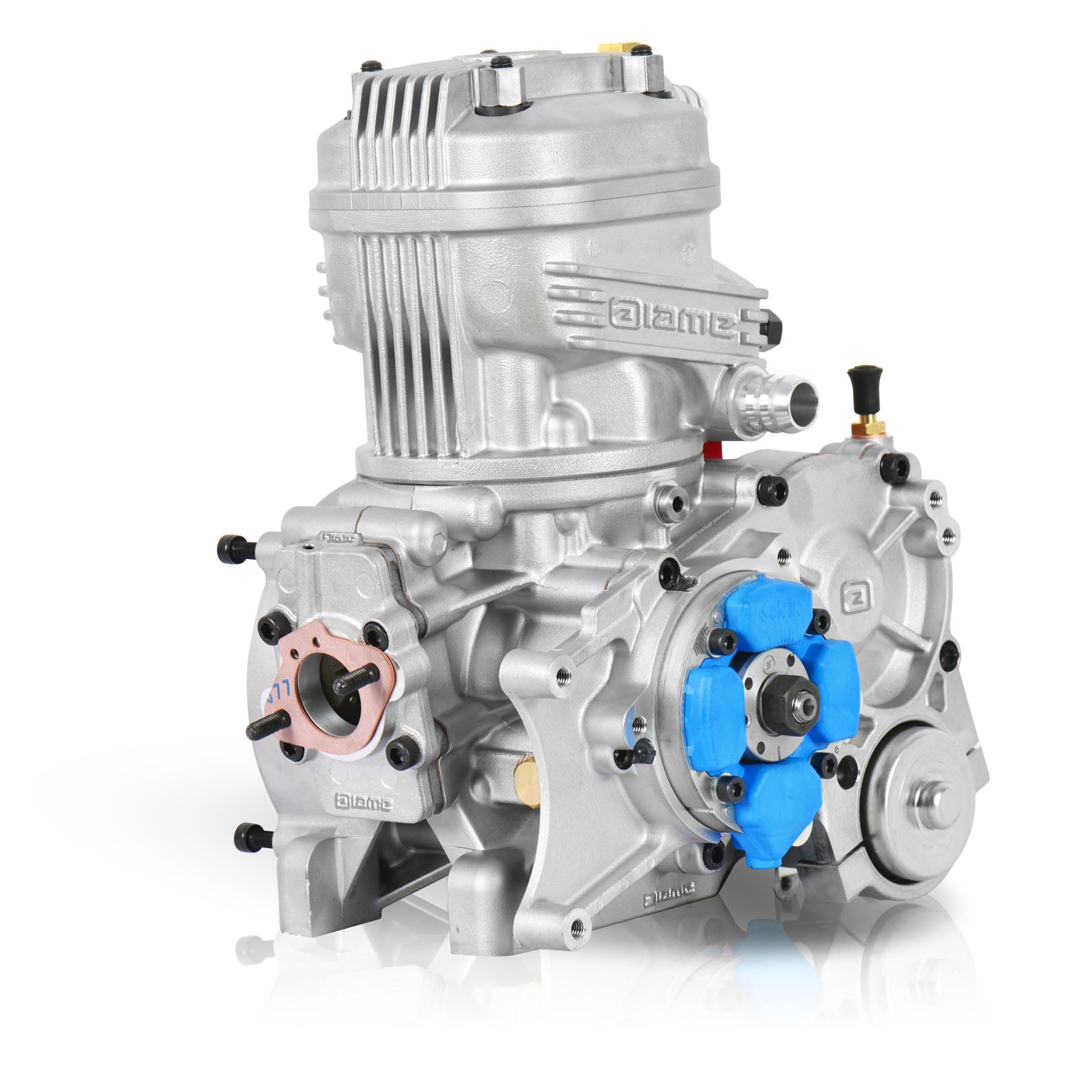

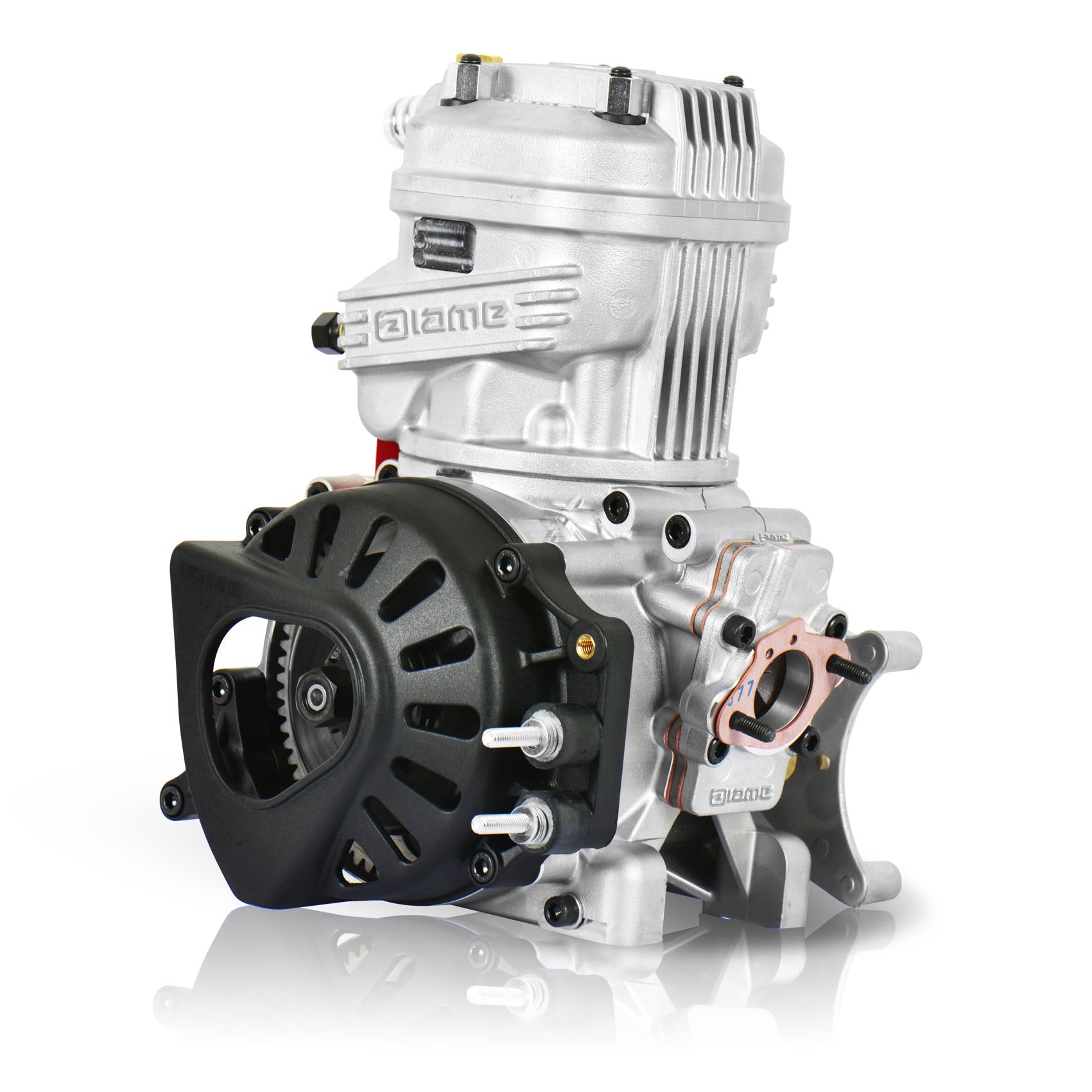

The X30 has been designed with the specific aim to provide Karting drivers with an innovative yet faithful to tradition engine. The IAME X30 offers modern features, such as the electric starter, the balancer shaft and the water cooling, yet preserving traditional Karting engines aspects, such as the diaphragm carburettor and no power valve. The result is an engine that offers a pure Karting driving experience, combined with ease of use and low maintenance.


Engine Type: 2-Stroke Single Cylinder
Bore: 54.00mm
Max Bore: 54.28mm
Stroke: 54.00mm
Displacement: 123.67cc (125cc max)
Carb. Model: Tryton Hobby 27/C (26mm)
Inlet System: Reed Valve
Lubrication: Oil Mixture 4%
Ignition System: Digital with Battery Charger
Transmission: Dry Centrifugal Clutch
Cooling System: Water Cooled
Starter: On-board Electric Starter
Max Power: 28HP (21HP) at 11,750 RPM
Max Torque: 17Nm (13Nm) at 10,750 RPM
Max RPM Limit: 16,000 RPM (RPM Limiter)

With this Engine Package:

  • Selettra digital K ignition with pick-up in the stator and generator for battery charging
  • H.T. coil and vibration dampers
  • NGK BR9EG sparkplug and resistive spark plug cap
  • Centrifugal dry clutch group with Z11 detachable sprocket
  • TRYTON HB27-C carb. Ø 26 mm
  • Intake silencer with foam air filter
  • Flexible hose with silicon sheath and springs
  • Exhaust silencer and exhaust header mod. X30
  • Starter motor external support
  • X30 electronic box “C” model - 16.000 RPM
  • Cables harness with connectors
  • SSR starter relay
  • Starter key assembly
  • Battery support
  • Velcro strap and dampening rubber pads
  • Water pump assembly, water pump support, water pump transmission pulley
  • Water radiator with support
  • Water hoses and clamps
  • Thermostat 50°
